High Precision Double Rotary Paper Sheeting Machine 300m/min Cutting Speed
Product Specifications
High Precision Synchronize - fly Sheeter features fibrelessand clean cuts with high dimensional precisions. Best for board paper,art paper, kraft paper and packing paper or board etc.automatic paper splicing system& pallet change system& pneumatic slitting knife system,improving production efficiency.
High Precision Double Rotary Paper Sheeting Machine 300m/min
| Attribute |
Value |
| Cutting Way |
Upper and lower rotary cutting mechanism |
| Refence weight of cutting paper |
200-1000GSM |
| Cutting accuracy |
±0.5mm |
| Max cutting speed |
300sheets/min |
| Max.cutting meter speed |
300m/min |
| Cutting length range |
450-1650mm |
| Max scroll diameter |
1800mm |
| Stacking height Of paperboard |
1300mm |
Product Description
Our AC Servo drive high precision double rotary sheet cutter paper machine incorporates advanced technology from Taiwan and Britain. Featuring:
- AC servo motor drive for fast and stable cutting speed
- German precision cutting knives for exceptional accuracy
- Intuitive touch computer interface for easy operation
- Technology and performance comparable to international standards
- Widely used in paper mills and printing factories
Key Features:
- INK JET system
- Automatic pallet change system
- Automatic paper splicing system
- Full automation capability, saving up to 70% labor costs
- High Precision Synchronize-fly Sheeter delivers fibre-less, clean cuts
- Ideal for board paper, art paper, kraft paper, and packing paper/board
Technical Specifications
| CHM Type |
CHM-SGT1400 |
CHM-SGT1700 |
CHM-SGT1900 |
| Cutting Way |
Upper and lower rotary cutting mechanism |
| Refence weight of cutting paper |
200-1000GSM |
| Cutting accuracy |
±0.5mm |
| Max cutting speed |
300sheets/min |
| Max.cutting meter speed |
300m/min |
| Cutting length range |
450-1650mm |
| Max scroll diameter |
1800mm |
| Stacking height Of paperboard |
1300mm |
| Max.paper-cutting width |
1400mm |
1700mm |
1900mm |
| Weight |
15000kg |
17000kg |
18400kg |
| Dimension(LxWxH) |
14453mm*4675mm*2350mm |
14453mm*4975mm*2350mm |
14453mm*5175mm*2350mm |
Key Components

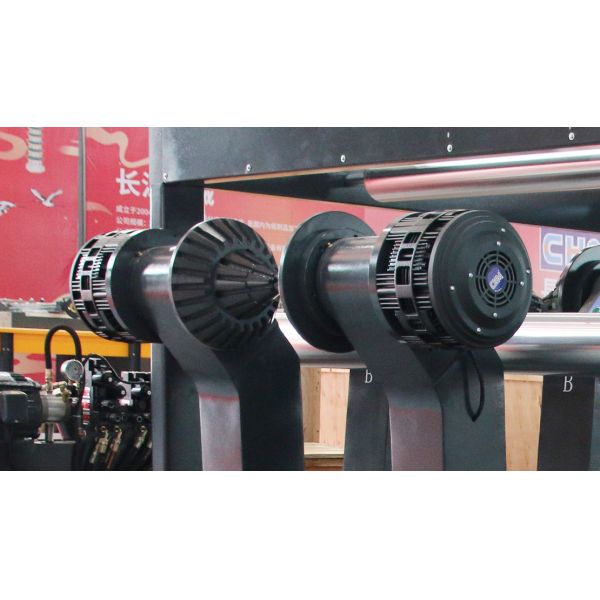

Hydraulic Shaft-less Unwind Station
Multi-disc Brake System
Auto Web Guide System
Electric De-curl Unit
High Precision Synchronic-Fly Cutting Unit
Conveyor Unit
Auto Jogger System
Middle Slitting and Waste Edge Collecting System
- Adjustable slitting knife and exhaust tube for waste edge on both sides
- Top slitter: Adjustable up or down, slitting width can be adjusted manually
- Bottom slitter: Fixed position, slitting width adjustable manually
- Windmill: Driven by 5.5kw motor
- Type-Y collecting pipe for waste edge

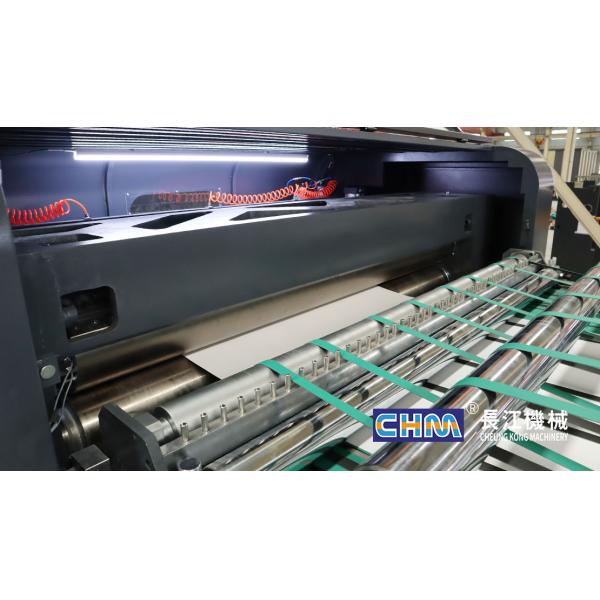

High Precision Double Rotary Sheet Cutter
- Top and bottom Tool Apron uses advanced cutting method to reduce noise and load while extending knife life
- Main driving roller features grainy surface with air pressure control for optimal paper grip
Static Eliminator System
Anti-static bar effectively eliminates static in sheets
Paper Conveyer System
- Horizontal conveying with multi-stage design for efficient counting and piling
- Includes high efficiency dust collecting equipment
- First conveying stage: Quickly separates cutting paper
- Second conveying stage: Tile-shaped conveyance with slow speed, single or linkage acting control
Auto Counting and Label Inserting Device
- Precisely inserts labels after counting
- Functions:
- Operates according to requirements after inputting number of paper pieces in HMI
- Refills defective products automatically
Driving Motor System
- AC servo motor for reclaiming blade
- AC motor for paper conveyor
- Inverter motor for secondary conveyor strap
- AC motor for stacker up/down movement
- AC motor for front jogger
- AC motor for waste edge collection windmill
- AC motor for unwind stand
Auto-Tension Control
Automatically controls tension based on paper roll diameter and weight input into touch screen
Auto-EPC (Edge Paper Control)
Precision sensing nozzle that quickly detects various web lines for EPC system
Frequently Asked Questions
Our Cooperative Partners
Paper mills: Sun Paper, ND Paper, Double A, APP, Onhing Paper, MYS, Chenmingpaper, JHE Paper, C&CJOINTPRINTING CO.(HK)LID, etc.
Quality Service
- All parts guaranteed for one year
- CHM Machinery provides lifetime maintenance
- Outside warranty period, spare parts and services available at preferential prices
Quality Guarantee
- Pre-production samples always provided before mass production
- Final inspection conducted before shipment
